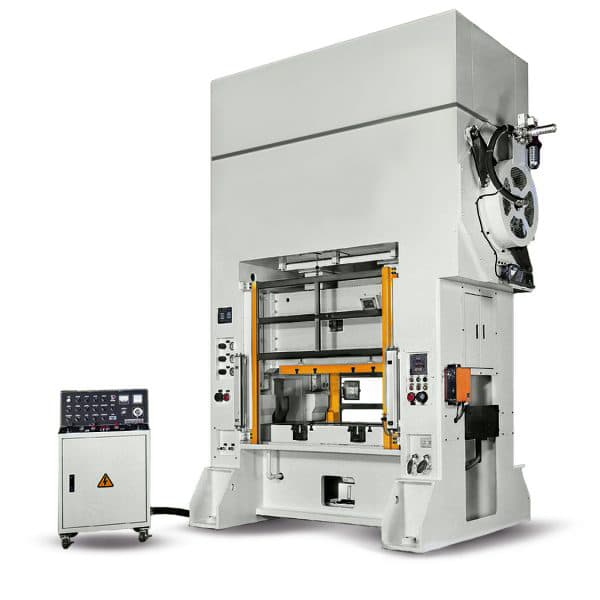

Mid Speed Large Format Stamping Press Lines

Full integrated and tooled-up, mid-speed, high precision Lamination Stamping Press Lines from 110 to 650 Tons with Bolsters up to 3000mm; with integrated coil handling and feeding, quick change Tooling systems and Stack / Scrap handling systems for left to right coil feeding up to 700mm and rear to front feeding of up to 1300mm.

VHS2 Series Features;

•Dual Point Straight Side Mechanical Lamination Press 400 to 650 Tons

•Stress relived 3 Part Steel Frame with Tie Rods for high accuracy

•Short stroke with high speeds up to 100spm

•Wet type Clutch / Brake

•Dual point Geared Drive

•Full length 8 faced Linear Bearings

•Hydraulic Overload Protection

•Programmable Knock-out system

•Automatic Lubrication

•Floor mounted Micro-Computer Controls and Control Pod

•Interface for Automation, Tool and Process monitoring

•Integrated with full range of Accessories

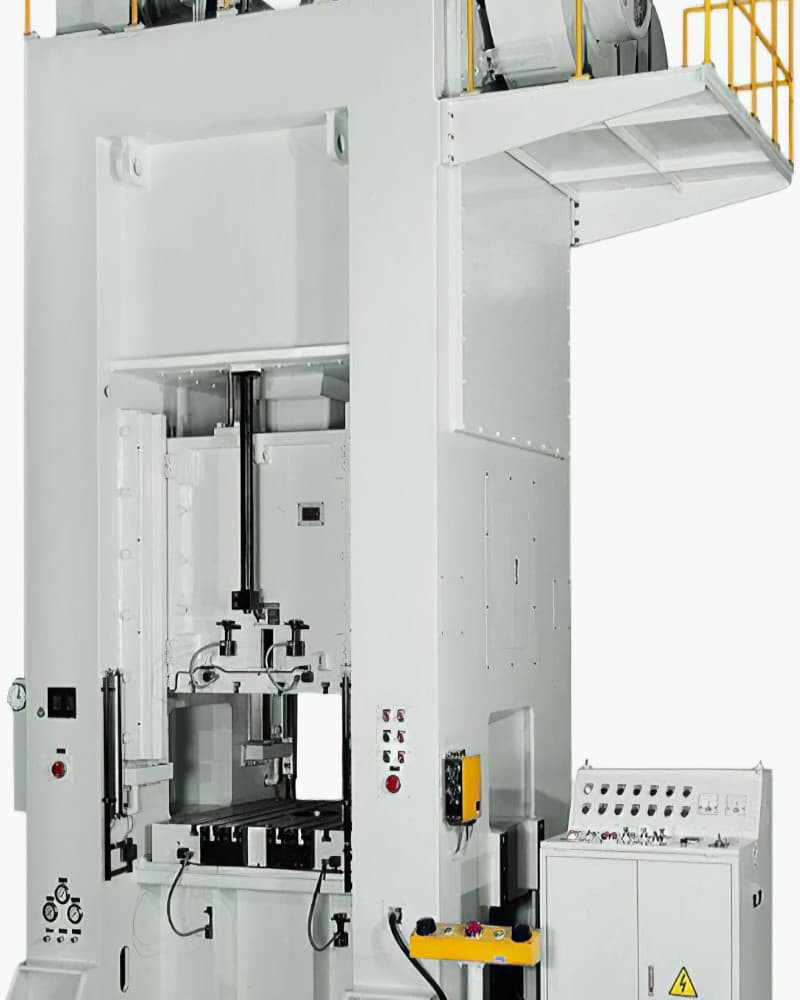

VSHS Series Lamination Press Lines

At Mesco Teknik, we design turnkey projects for your production process together with our coil handling, straightening and feeding systems, progressive tooling technology and post-press solutions.

VSHS Series Features;

•Single Point Straight Side Mechanical Lamination Press 110 to 600 Tons
